SAFE CRACKER STUFF

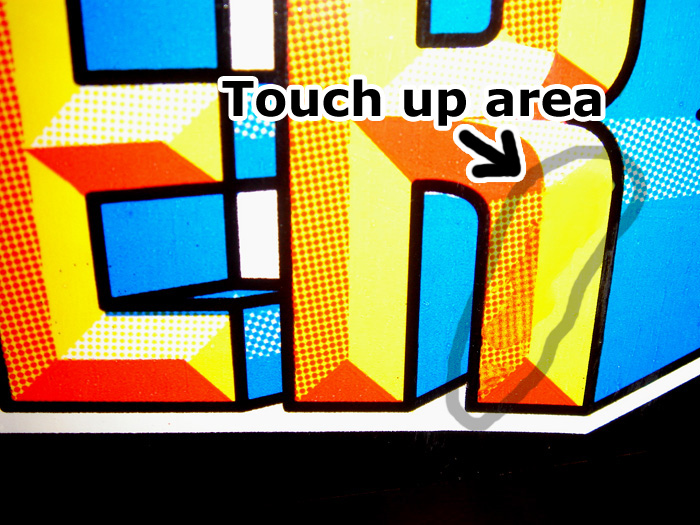

Silk Screened Cabinet Touch-Up:

Lower right leg of "R" was worn down to the wood. Yellow base was applied and then
red "dots" were stenciled on using a 0.016" thick brass perforated sheet with 0.020"
diameter holes spaced 0.030" on center. McMaster Carr part # 9360T14.

Lift Off Hinges for Safe Cracker Vault Doors:

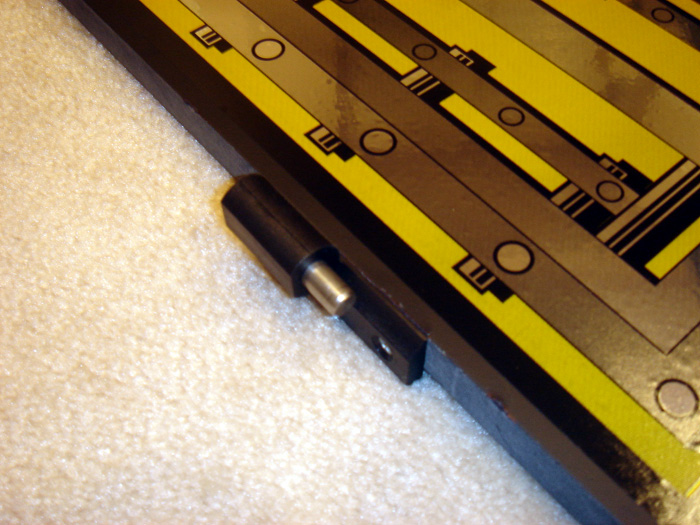

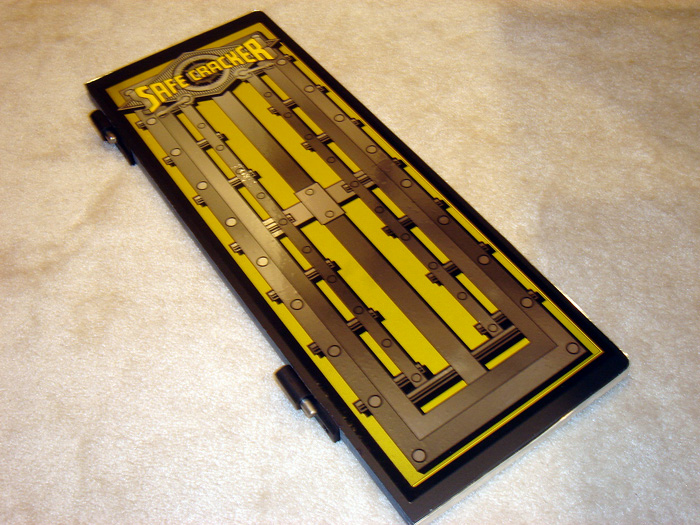

Safe Cracker vault door "wing" with lift off nylon hinges.
McMaster Carr part # 18585A26 (right hand) and 18585A23 (left hand).

Hinge has 3/8" diameter stainless steel pin. Load rated to 44 lbs.

The hinges permit the game to fit into spots that it
otherwise wouldn't with the wings installed.

The wings can be rotated to different angles depending on
space and lifted right off the game if necessary.
